Rosetta Integration¶

REvoDesign integrates with the Rosetta molecular modeling suite through RosettaPy, a Python package that wraps Rosetta command-line binaries across local, Docker, MPI, and WSL-based compute nodes.

[!IMPORTANT] RosettaPy is NOT PyRosetta. PyRosetta is a Python binding to Rosetta's C++ objects. RosettaPy is a subprocess wrapper around the Rosetta command-line tools. If you're looking for PyRosetta, see pyrosetta.org.

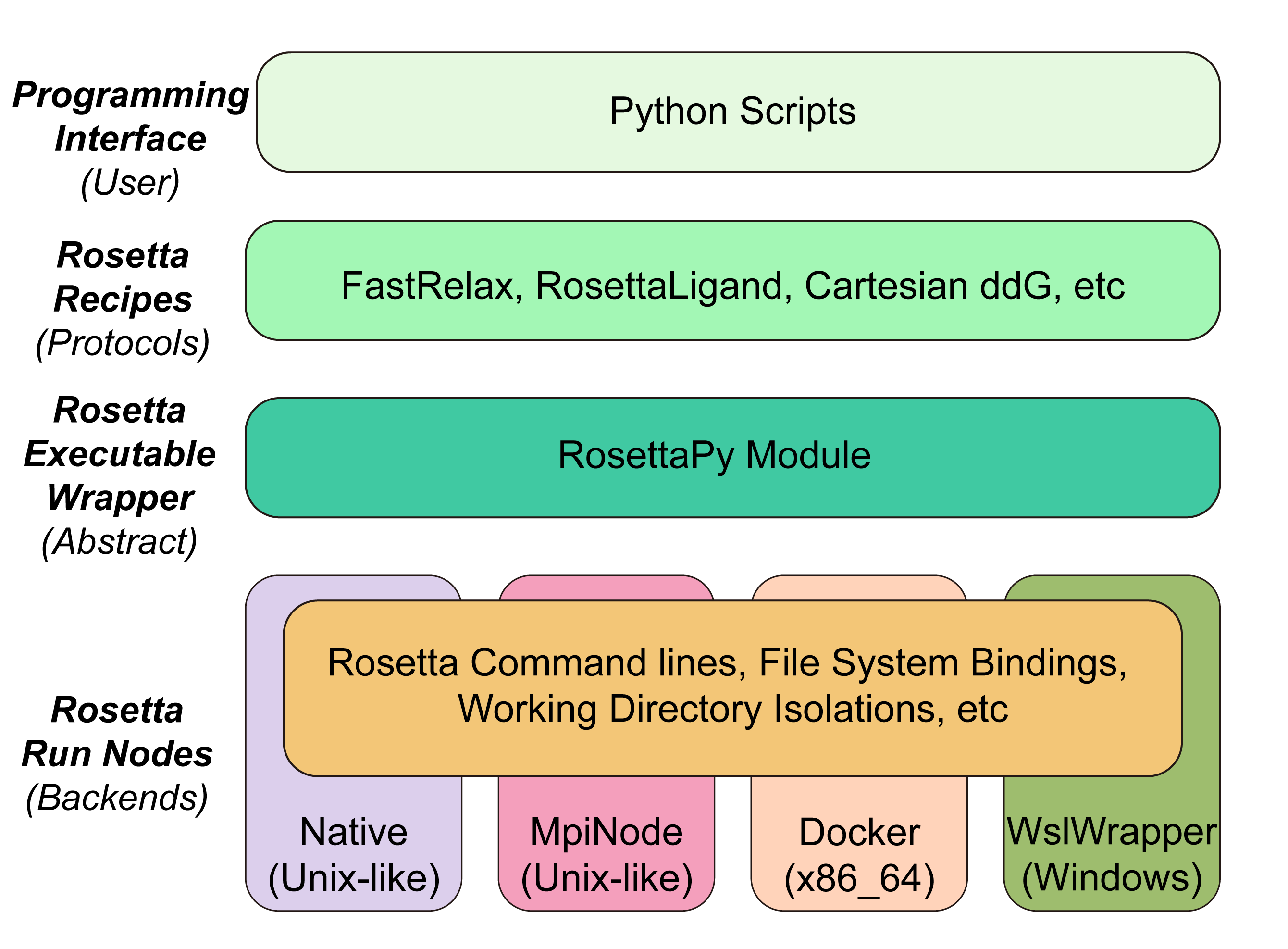

RosettaPy top-down design — RosettaPy architecture: multi-node Rosetta execution via Native, Docker, MPI, and WSL backends

Architecture¶

┌──────────────────────────────────────────────┐
│  REvoDesign UI (ConfigBus)                   │
│  - Rosetta options (nproc, protocol)         │
│  - Node selection (native/docker/mpi/wsl)    │
│  - Score function presets                    │
├──────────────────────────────────────────────┤
│  RosettaPy (pip: RosettaPy)                  │
│  ┌────────────────────────────────────────┐  │
│  │  RosettaAppBase (ABC)                  │  │
│  │  ├── FastRelax                         │  │
│  │  ├── PROSS (stability design)          │  │
│  │  ├── RosettaLigand (ligand docking)    │  │
│  │  ├── Supercharge (surface charge opt)  │  │
│  │  ├── CartesianDDG (ΔΔG protocol)      │  │
│  │  └── ScoreClusters (point mutation)    │  │
│  ├────────────────────────────────────────┤  │
│  │  Rosetta (dataclass)                   │  │
│  │  - Flag/option generation              │  │
│  │  - Task setup (native/MPI)             │  │
│  │  - Output directory management         │  │
│  ├────────────────────────────────────────┤  │
│  │  Analysers                             │  │
│  │  ├── RosettaEnergyUnitAnalyser (REU)   │  │
│  │  └── RosettaCartesianddGAnalyser (ddG) │  │
│  ├────────────────────────────────────────┤  │
│  │  Node System (node_picker)             │  │
│  │  ├── Native (local subprocess)         │  │
│  │  ├── MpiNode (mpirun wrapper)          │  │
│  │  ├── RosettaContainer (Docker)         │  │
│  │  └── WslWrapper (Windows WSL)          │  │
│  ├────────────────────────────────────────┤  │
│  │  RosettaFinder + RosettaBinary         │  │
│  │  - Auto-discover installed binaries    │  │
│  │  - Parse binary mode/OS/compiler       │  │
│  └────────────────────────────────────────┘  │
├──────────────────────────────────────────────┤
│  Rosetta Binary (external)                   │
│  - relax, score_jd2, mutate_relax            │
│  - RosettaScripts XML parser                 │
│  - Database (chemical, scoring, etc.)        │
└──────────────────────────────────────────────┘

Key Components¶

RosettaPy Package¶

RosettaPy is distributed on PyPI (pip install RosettaPy) and provides:

`Rosetta` — Core Wrapper¶

A @dataclass that wraps a Rosetta binary invocation:

Field	Type	Purpose
`bin`	`RosettaBinary \\| str`	Binary name (e.g. `"rosetta_scripts"`) or `RosettaBinary` object
`flags`	`list[str]`	Flag files to include (`@file.flags`)
`opts`	`list[str \\| RosettaScriptsVariableGroup]`	Command-line options
`use_mpi`	`bool`	Enable MPI parallel execution
`run_node`	`NodeClassType`	Where to execute (default: `Native()`)
`job_id`	`str`	Unique job identifier (`"default"`)
`output_dir`	`str`	Root output directory
`save_all_together`	`bool`	Flatten PDB/score output into single dirs
`enable_progressbar`	`bool`	Show progress bar during parallel runs
`isolation`	`bool`	Run in isolated temp directory
`verbose`	`bool`	Verbose logging

Key methods: setup_tasks_native(), setup_tasks_with_node(), run().

`RosettaBinary` and `RosettaFinder`¶

RosettaBinary is a @dataclass representing a discovered binary:

Fields: dirname, binary_name, mode (static/mpi/default), os (linux/macos), compiler (gcc/clang), release (release/debug)
from_filename(dirname, filename): Parse a binary filename into its components

RosettaFinder searches the local filesystem for Rosetta installations and returns RosettaBinary instances.

Node System¶

Nodes abstract where Rosetta runs. The node_picker() factory function resolves a NodeHintT string to a node instance:

Hint	Node Class	Description
`"native"`	`Native`	Local subprocess (default, 4 cores)
`"mpi"`	`MpiNode`	`mpirun` wrapper for local multi-core
`"docker"`	`RosettaContainer`	`rosettacommons/rosetta:latest`, MPI disabled
`"docker_mpi"`	`RosettaContainer`	`rosettacommons/rosetta:mpi`, MPI enabled
`"wsl"`	`WslWrapper`	Windows Subsystem for Linux, serial
`"wsl_mpi"`	`WslWrapper`	Windows Subsystem for Linux, MPI enabled

from RosettaPy.node import node_picker

# Pick a node by hint
node = node_picker("docker_mpi", nproc=8, image="rosettacommons/rosetta:mpi")

All nodes accept nproc and other kwargs via node_picker(). The type union is NodeClassType = Union[Native, MpiNode, RosettaContainer, WslWrapper].

`RosettaAppBase` — Application ABC¶

class RosettaAppBase(ABC):
    def __init__(
        self,
        job_id: str,                          # unique job identifier
        save_dir: str,                        # output root directory
        user_opts: Optional[list[str]] = None, # extra Rosetta flags
        node_hint: NodeHintT = "native",       # node type hint
        node_config: Optional[Mapping] = None,  # node-specific kwargs
        **kwargs,
    ):

The node property can be updated at runtime via app.node = (new_hint, new_config).

Available Apps¶

App	Source	Purpose
`FastRelax`	`RosettaPy.app.fastrelax`	All-atom energy minimization with constraints
`PROSS`	`RosettaPy.app.pross`	Protein Stability (PROSS) sequence design
`RosettaLigand`	`RosettaPy.app.rosettaligand`	Ligand docking with flexible sidechains
`Supercharge`	`RosettaPy.app.supercharge`	Surface charge optimization (AVNAPS)
`CartesianDDG`	`RosettaPy.app.cart_ddg`	Cartesian ΔΔG binding free energy
`ScoreClusters`	`RosettaPy.app.mutate_relax`	Point mutation + repacking + minimization

Analysers¶

Analyser	Source	Purpose
`RosettaEnergyUnitAnalyser`	`RosettaPy.analyser.reu`	Parse `.sc` score files, extract total + per-residue REU
`RosettaCartesianddGAnalyser`	`RosettaPy.analyser.ddg`	Parse cartesian ΔΔG output with statistics (`get_stats()`, best decoy)

`RosettaScriptsVariableGroup`¶

Programmatic interface for building RosettaScripts XML with variable groups and residue selectors (expand_input_dict()).

Rosetta Utilities (`REvoDesign.tools.rosetta_utils`)¶

All 10 functions verified against source:

Function	Purpose
`is_rosetta_runnable()`	Check whether any Rosetta backend is available
`is_docker_available()`	Check Docker daemon accessibility
`is_run_node_available(node_hint)`	Check a specific node type is configured
`is_wsl_available()`	Detect Windows Subsystem for Linux
`read_rosetta_config(key_path)`	Load Rosetta options from `main.yaml`
`read_rosetta_node_config()`	Load node definitions (host, port, credentials)
`setup_minimal_rosetta_db(subdir)`	Bootstrap a minimal Rosetta database directory
`list_fastrelax_scripts()`	Enumerate available FastRelax XML scripts
`extra_res_to_opts(ligand_params)`	Convert extra-residue param files to `-in:file:extra_res_fa` flags
`copy_rosetta_citation(citation)`	Wrap Rosetta citations with REvoDesign BibTeX key

Rosetta Tasks (`REvoDesign.shortcuts.tools.rosetta_tasks`)¶

High-level shortcut functions combining RosettaPy apps with REvoDesign workflows. Key subclasses wrap the upstream apps for use as cmd.extend commands:

FastRelax (wraps RosettaPy.app.FastRelax) — energy minimization
PROSS (wraps RosettaPy.app.PROSS) — stability design
RosettaLigand (wraps RosettaPy.app.RosettaLigand) — ligand docking

ddG Analysis¶

Cartesian ddG (ΔΔG) scoring estimates the change in binding free energy from a mutation:

CartesianDDG in RosettaPy.app.cart_ddg — runs the Rosetta cartesian ΔΔG protocol with RosettaCartesianddGAnalyser for result parsing.
The ddg gimmick in REvoDesign.magician.designers — an ExternalDesignerAbstract subclass that calls this protocol.
REvoDesign.shortcuts.tools.designs — contains design-related shortcut functions.

MutateRelax Worker¶

MutateRelax_worker in REvoDesign.sidechain.mutate_runner.RosettaMutateRelax wraps RosettaPy.app.ScoreClusters as a MutateRunnerAbstract subclass. Registered in RUNNER_REGISTRY.

Configuration¶

Rosetta settings live in main.yaml under .rosetta.opts and in src/REvoDesign/config/rosetta-node/ for node definitions.

Config key	Purpose
`ui.mutate.mutate_runner`	Active sidechain solver (e.g., `MutateRelax_worker`)
`ui.mutate.nproc`	Number of parallel Rosetta processes
`rosetta.opts.general`	Default Rosetta flags (read by `read_rosetta_config()`)
`rosetta.node_hint`	Node type: `native`, `docker`, `docker_mpi`, `mpi`, `wsl`, `wsl_mpi`
`rosetta.node_config`	Node-specific kwargs (image, nproc, host, etc.)

Docker Integration¶

For users without a native Rosetta installation, RosettaPy can pull the official Docker images:

rosettacommons/rosetta:latest — serial execution ("docker" hint)
rosettacommons/rosetta:mpi — MPI-enabled ("docker_mpi" hint)

Docker availability is checked at startup via is_docker_available(). Set ENABLE_ROSETTA_CONTAINER_NODE_TEST=NO to skip Docker tests in CI.

Adding a New Rosetta Protocol¶

See Adding a Sidechain Solver for mutate protocols. For analysis/shortcut protocols:

Create a new module in REvoDesign.shortcuts.tools.
Subclass RosettaPy.app.abc.RosettaAppBase with your protocol.
Write a shortcut function decorated with @get_cited for citation tracking.
Register in shortcuts/registry/ as a YAML config defining dialog inputs and the function entry point.
Add a menu action in REvoDesign.ui if it needs a UI trigger.

Platform Compatibility¶

From the RosettaPy README:

Node	Linux	macOS	Windows	Notes
`Native`	✅	✅	❌	Requires Rosetta compiled from source
`MpiNode`	✅	✅	❌	Requires `extras=mpi` build + MPI installed
`RosettaContainer`	✅	✅	✅	Docker Desktop; macOS uses Rosetta2 translation on Apple Silicon
`WslWrapper`	❌	❌	✅	WSL2 with Rosetta built inside the distro

Native and MpiNode require a local Rosetta build — Linux and macOS only. RosettaContainer (Docker) works on all three platforms. Windows users without Docker can use WslWrapper with a WSL2 Rosetta installation.

Limitations¶

Rosetta is not bundled with REvoDesign — users must install it separately or use the Docker images.
Some protocols (cartesian ddG, FastRelax) require a Rosetta license for commercial use.
RosettaPy ≠ PyRosetta. RosettaPy wraps the CLI; PyRosetta binds C++ objects.
